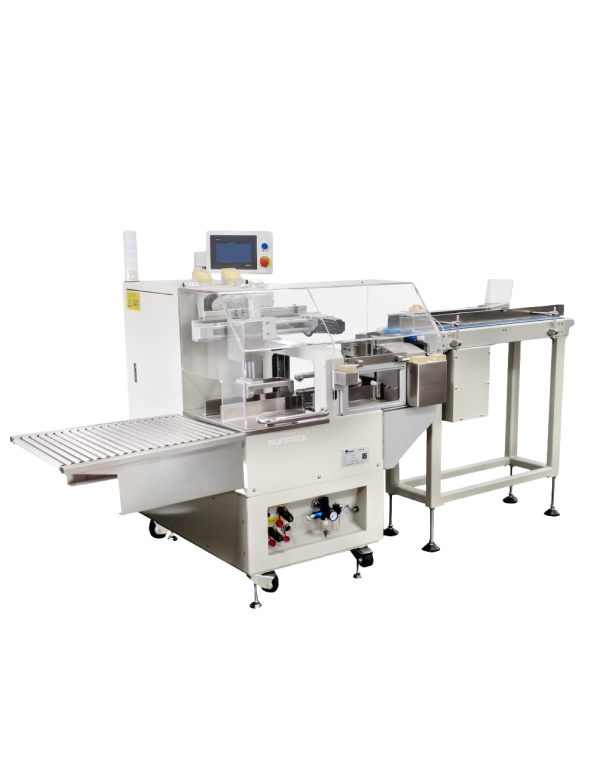

The WX05-30MDW1 Ultrasonic Cold Welding Machine with Stacking System is a highly efficient and innovative solution for industries that require secure, clean, and precise bonding without the use of heat or adhesives. This system utilizes ultrasonic cold welding technology, which uses high-frequency vibrations to generate localized heat through pressure, creating strong, durable bonds without any adverse effects on the materials being welded. The machine is equipped with an integrated stacking system that automatically stacks materials, ensuring smooth and continuous operation during high-volume production.
Standard: Arrives in 5-8 business days
Express: Arrives in 2-3 business days
These shipping rates are not applicable for orders shipped outside of the US. Some oversized items may require an additional shipping charge. Free Shipping applies only to merchandise taxes and gift cards do not count toward the free shipping total.
Orders placed between 10/1/2023 and 12/23/2023 can be returned by 2/27/2023.
Return or exchange any unused or defective merchandise by mail or at one of our US or Canada store locations. Returns made within 30 days of the order delivery date will be issued a full refund to the original form of payment.
Lorem ipsum dolor sit sed do eiusmod tempor incididunt labore enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident.
Lorem ipsum dolor sit sed do eiusmod tempor incididunt labore enim ad minim veniamnisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident.
Lorem ipsum dolor sit sed do eiusmod tempor incididunt labore enim adquis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident.
Model | WX05-30MDW1 | WK05-50MDW1 |
Description | Automatic ultrasonic banding machine with down stacking | Automatic ultrasonic banding machine with down stacking |
Material Specification | Width: 29.2-29.6mm Thickness: 120mic Length: 500meters Core:76mm | Width: 49.2-49.6mm Thickness: 120mic Length: 500meters Core: 76mm |
Arch Size | 300*200mm | 300*200mm |
Banding Size | Min: 50*10mm Max: 115*125mm | Min: 50*10mm Max: 115*125mm |
Table Height | 660+/-30mm | 660+/-30mm |
Power Supply | 220V 50hz 1phase or 110V 60hz 1phase | 220V 50hz 1phase or 110V 60hz 1phase |
Power Rate | 850W | 850W |
Control System | Schneider PLC+ Schneider touch screen | Schneider PLC+ Schneider touch screen |
Banding Speed | 10 bands/Minute | 10 bands/Minute |
Banding Tension | 10-40N | 10-40N |
Welding Method | Ultrasonic cold welding | Ultrasonic cold welding |
NW(KG) | 222kg | 222kg |
Air Supply | 0.6-0.7Mpa | 0.6-0.7Mpa |
Machine Dimension | 1980 x 1075 x 1400 mm | 1980 x 1075 x 1400 mm |
